FASERFIX SUPER drainage system | heavy traffic loads

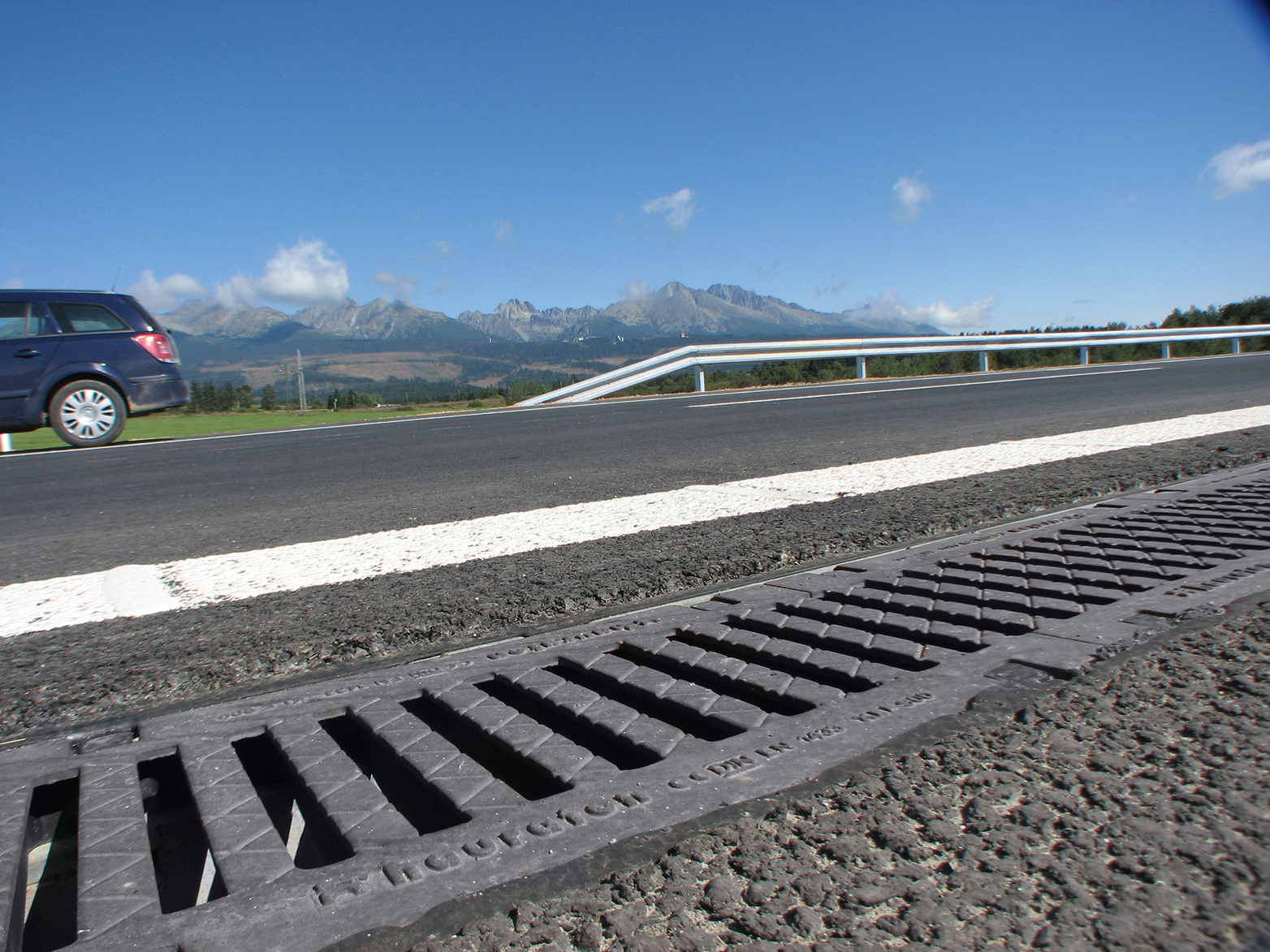

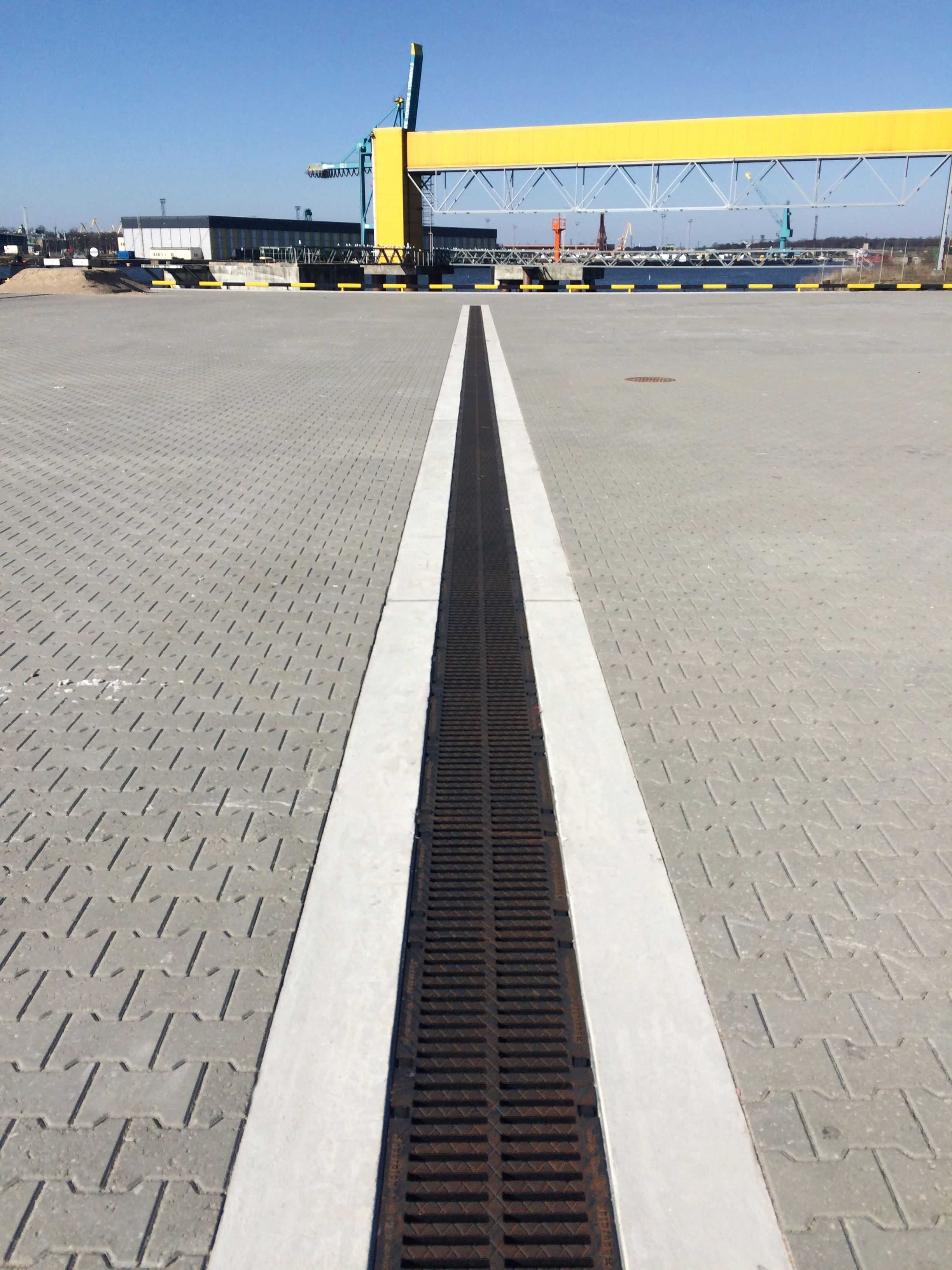

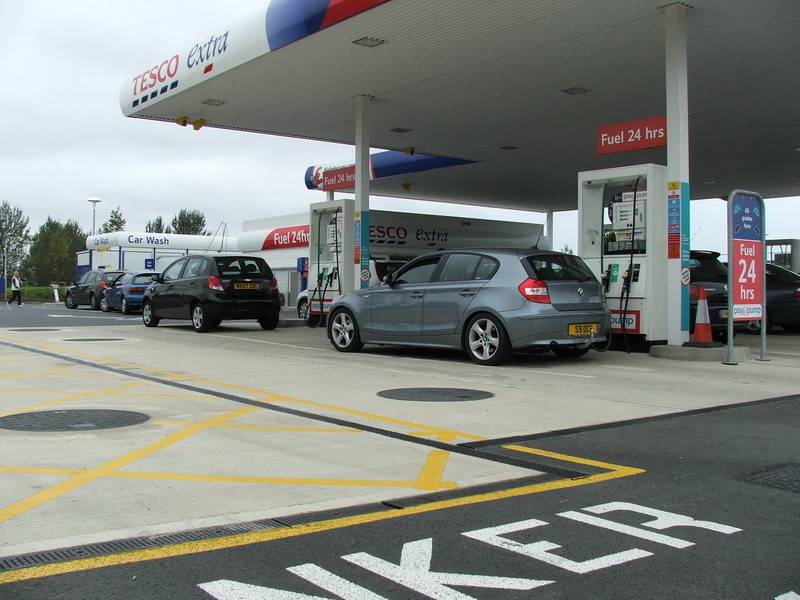

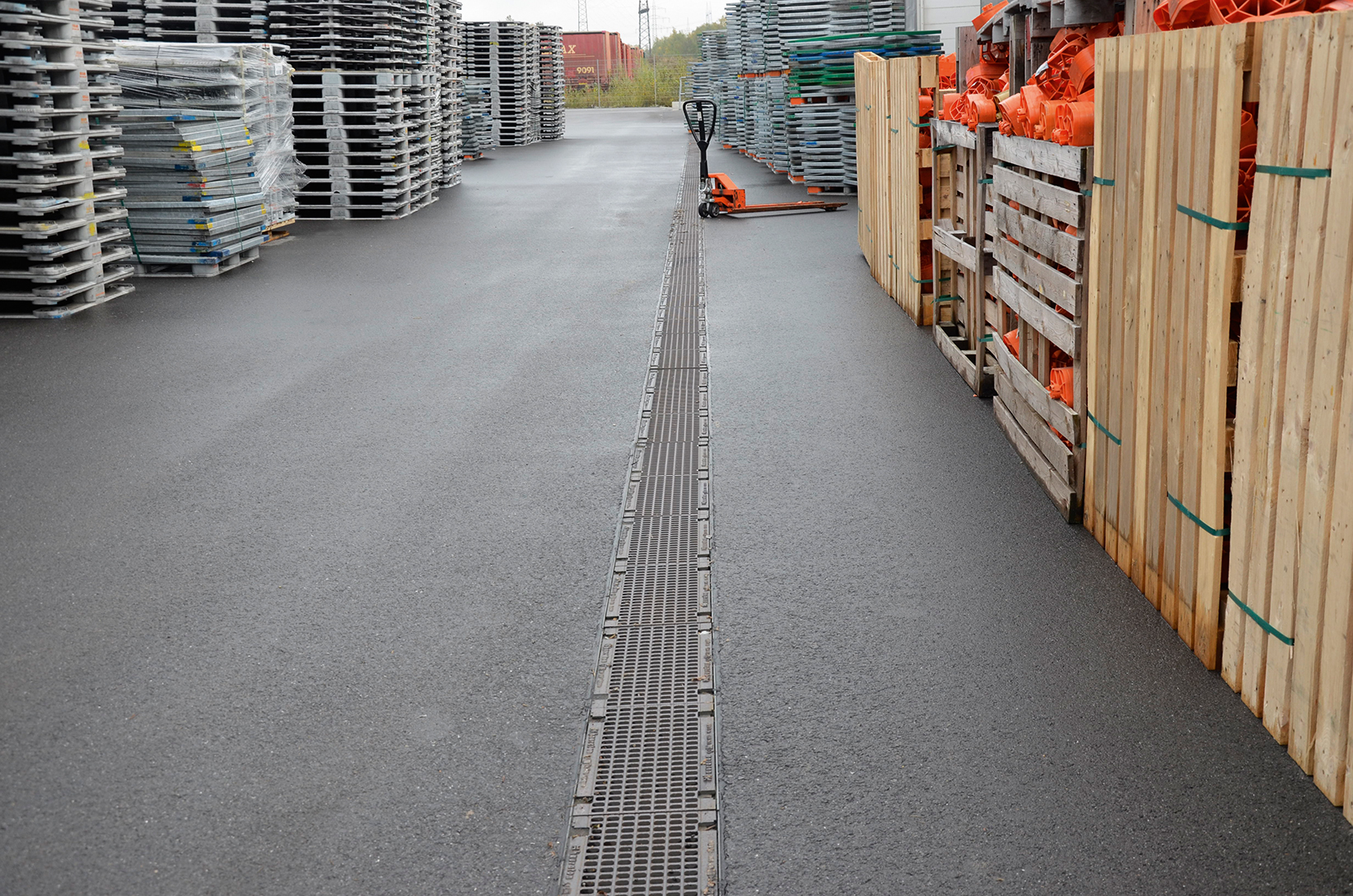

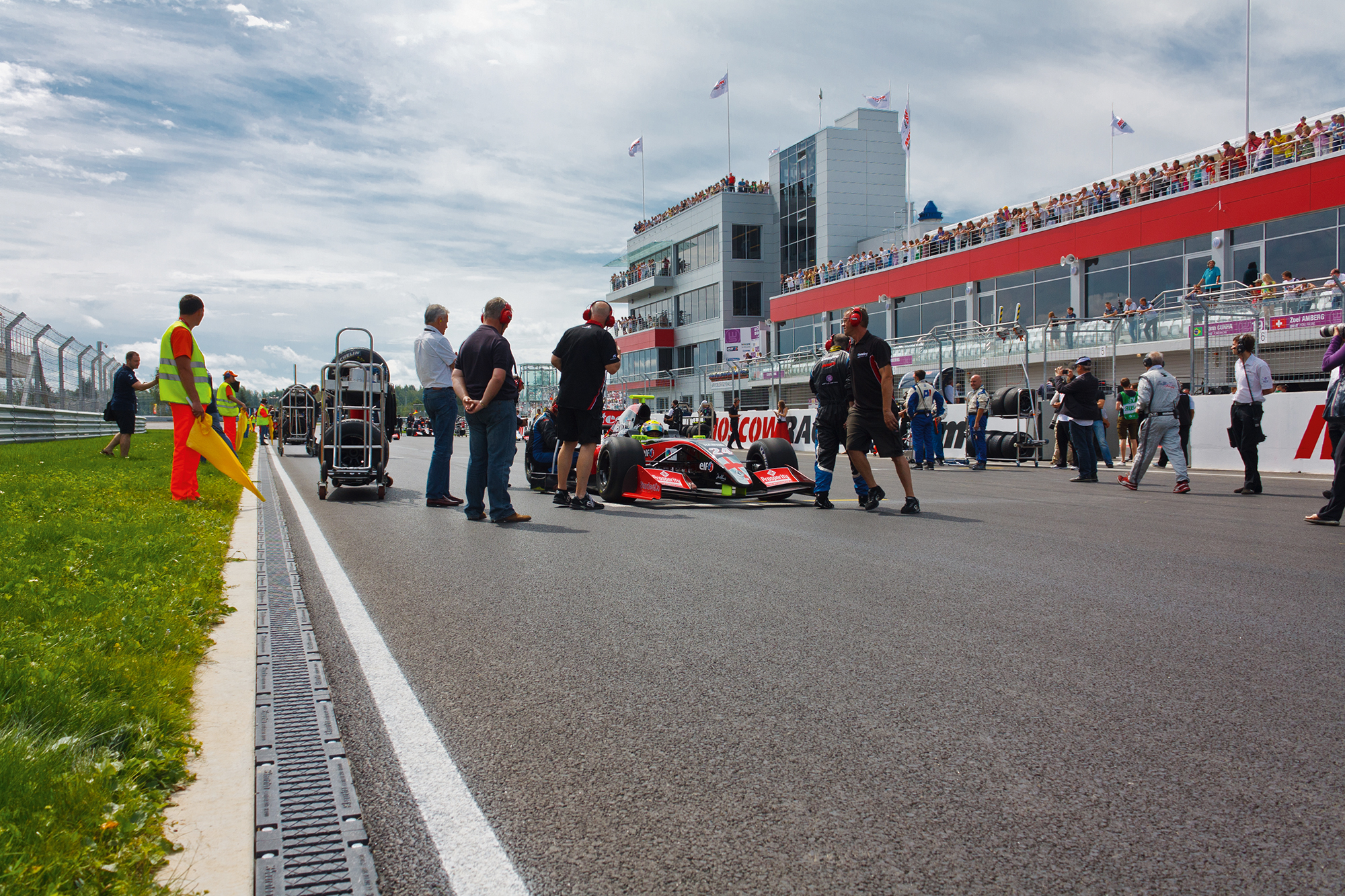

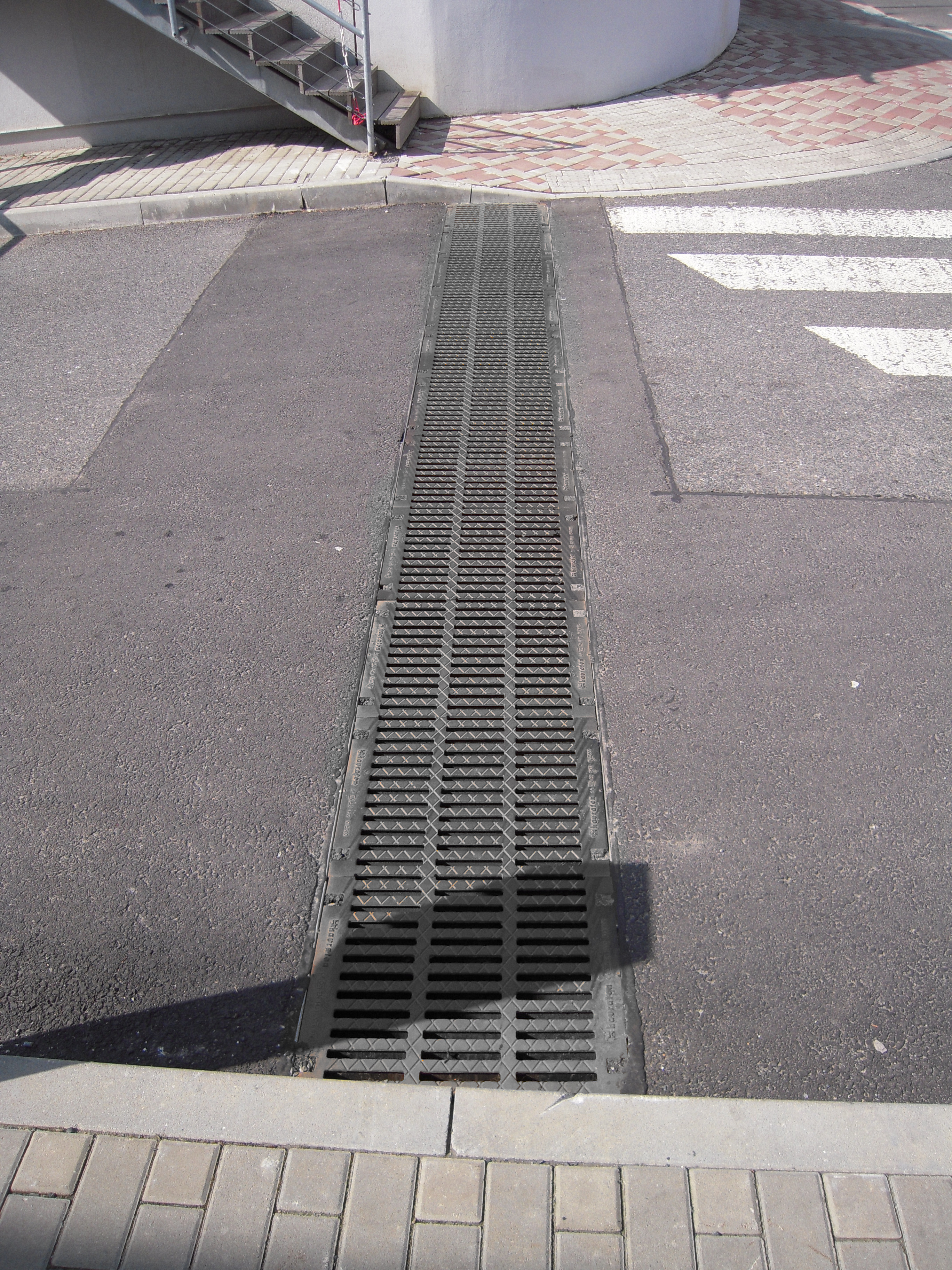

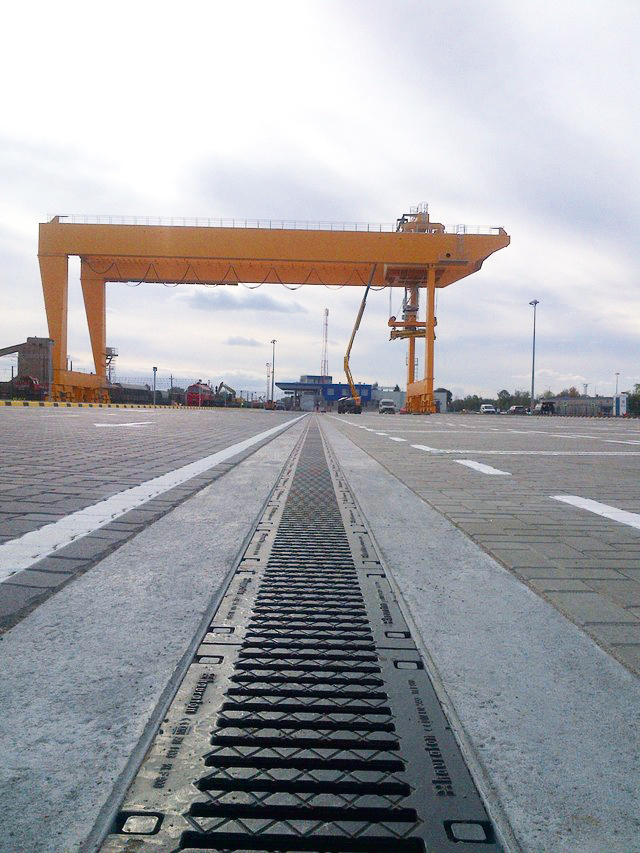

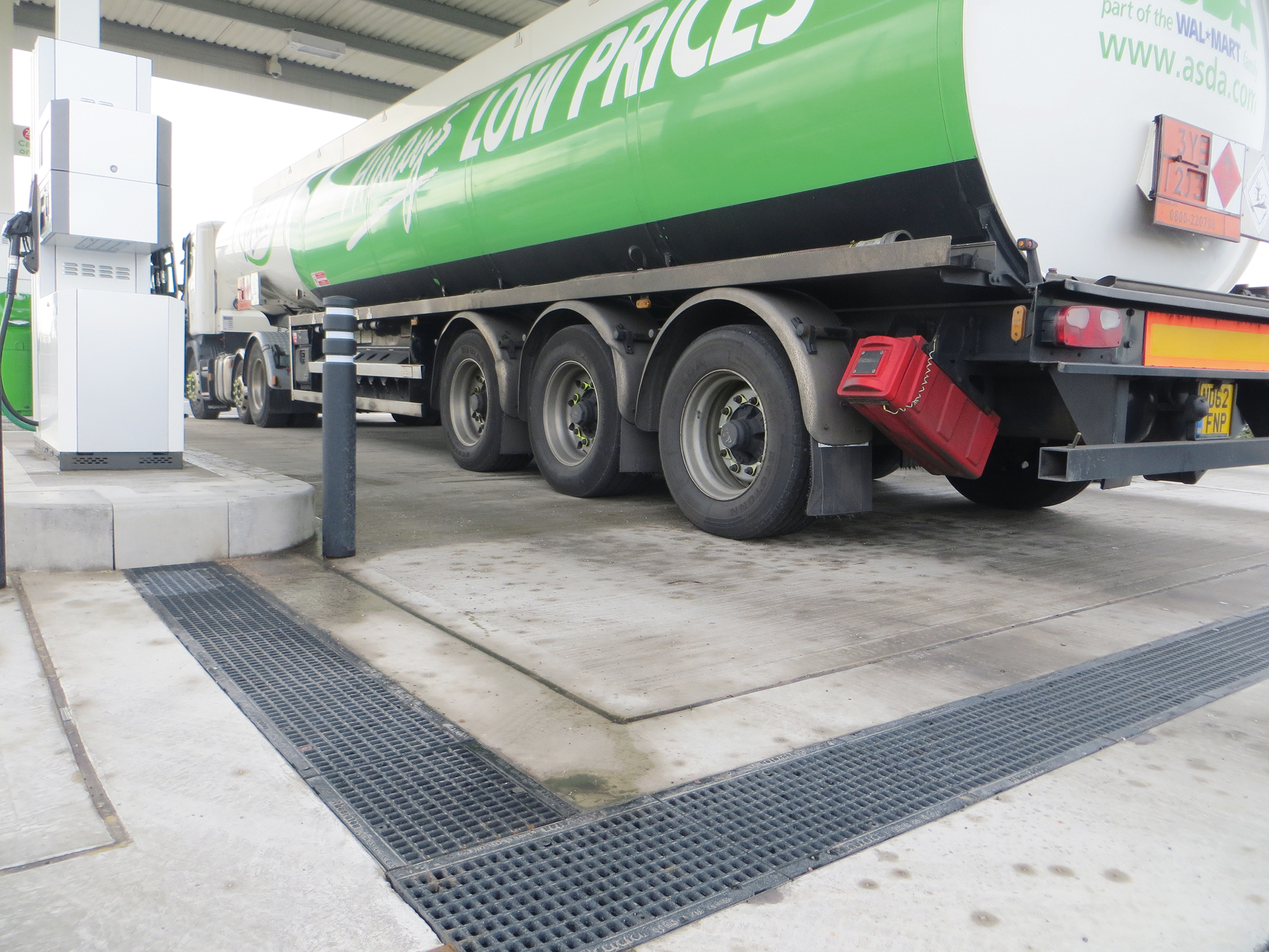

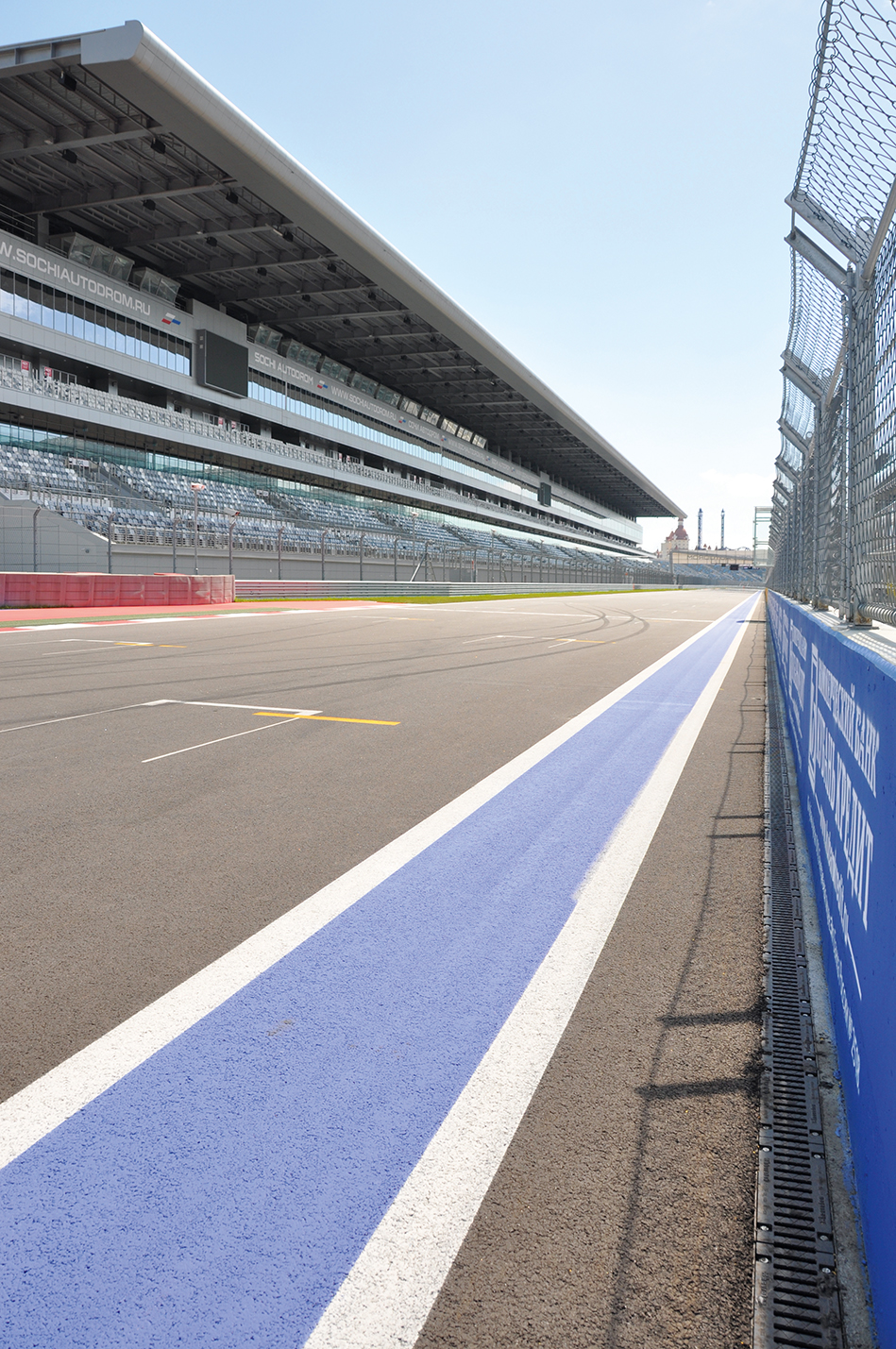

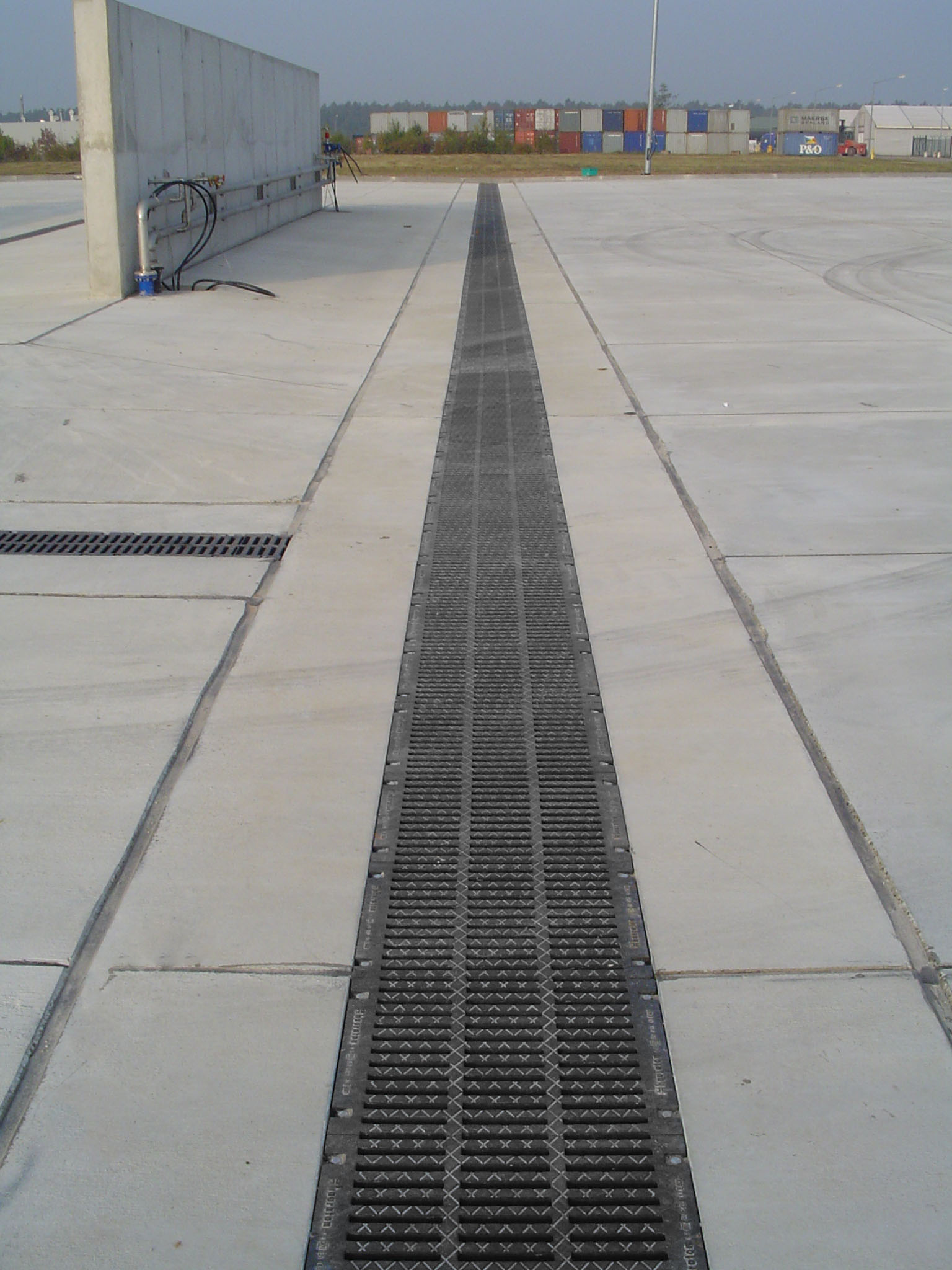

IDEAL FOR: applications with heavy loads and high dynamic forces up to class F 900, such as traffic areas for industry, roads and petrol stations.
YOUR BENEFITS WITH FASERFIX SUPER
HIGH PERFORMANCE ANGLE HOUSING AND SIDE-LOCK
- 40 mm x 40 mm angle housing and inlaying grating
- extremely stable connection between steel angle housing and concrete channel body
- 16 fixing points for gratings per metre (incl. 8 times with optional bolting)
- extra protection against lateral movement
- 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
- replace and insert the grating without any special tool (if unbolted), a screwdriver is enough
= Quality assured | Cost savings
HIGH-TECH MATERIAL
- „Made in Germany“
- maximum stability through fibre - reinforced concrete (polypropylene fibres) with low weight
- adheres well to foundation concrete (same coefficient with regard to thermal expansion)
- installation without grating possible
- fire resistance class A1 (not flammable) according to DIN 4102
= Quality assured | Performance assured
HIGH STABILITY
- maximum lateral stability through extra thick walls compared to many competitors‘ products for additional security in extreme situations
- installation for asphalted surface up to class E 600 without concrete stretcher
= Performance assured

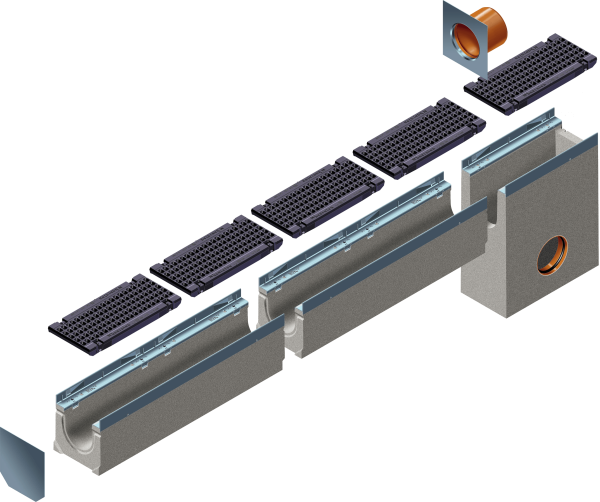

THE SYSTEM IN DETAIL
Afvoergoten uit vezelversterkt beton, volgens DIN V 19580 / En 1433, CE-conformiteit, met veiligheidsvoegen, randbescherming in staal met automatisch vergrendelingssysteem SIDE-LOCK, met man/vrouw verbinding voor een accurate plaatsing
Talrijke roostervariantes, bij GUGI-gietijzeren mazenroosters
Zandvanger met 3 zijdige mogelijkheid tot aansluiting op goten, geïntegreerd PVC-aansluitstuk DN 110 met uitneembare vuilvangemmer
sluitplaten met uitloop
sluitplaat zonder uitloop
