RECYFIX NC heavy duty drainage made of recycled composite
IDEAL FOR: heavy duty applications with higher traffic up to class E 600, such as car parks, industrial estates and petrol stations.
IHRE NUTZEN MIT RECYFIX NC
VERY HIGH STABILITY
- massive ductile iron grating
- RECYFIX®NC 100, 200, 300: load class E 600
- RECYFIX®NC 400: load class D 400
- 8-fold bolted per metre
= Performance assurée | Qualité assurée
INTEGRATED ANGLE HOUSING
- according to EN 1433
- molded as integral part of the channel body (made of PP)
- ridges to stop any lateral movement
= Performance assurée
EASY HANDLING ON SITE
- much lighter than channels made of polymer / resin concrete
- easy transport and installation Example (complete system - 1 m channel incl. gratings) NW 100 = 10.7 kg, NW 200 = 20.8 kg
= Gain de temps | Économies de coûts
HIGH-GRADE MATERIAL
- RECYFIX® - stable and almost unbreakable
- elastic and especially robust material
- withstands high loads and temperature differences in daily use
- 100 % recycled composite body (and also 100 % recyclable) ---> 100 % environmentally friendly
- 0 % water absorption
- smooth inner surface for superior flow characteristics
- non-conductive
- PP channel body can be cut, drilled and worked easily on site
= Performance assurée | Qualité assurée
HIGH RESISTANCE
- high resistance against frost, de-icing salt and UV-rays
- withstands high temperature differences
- for climate ranges from - 50 °C to + 80 °C and more
= Longévité | Qualité assurée
PRE-ASSEMBLED READY FOR INSTALLATION
- channel and grating = one part
- no spare parts
- easy handling in stock and on construction site
- cost-efficient transport
= Minimisation des coûts
SELF-CENTERING BOLT
- the bolt automatically finds the right position
- bolts easily detachable even after years of use
= Économies de coûts | Qualité assurée

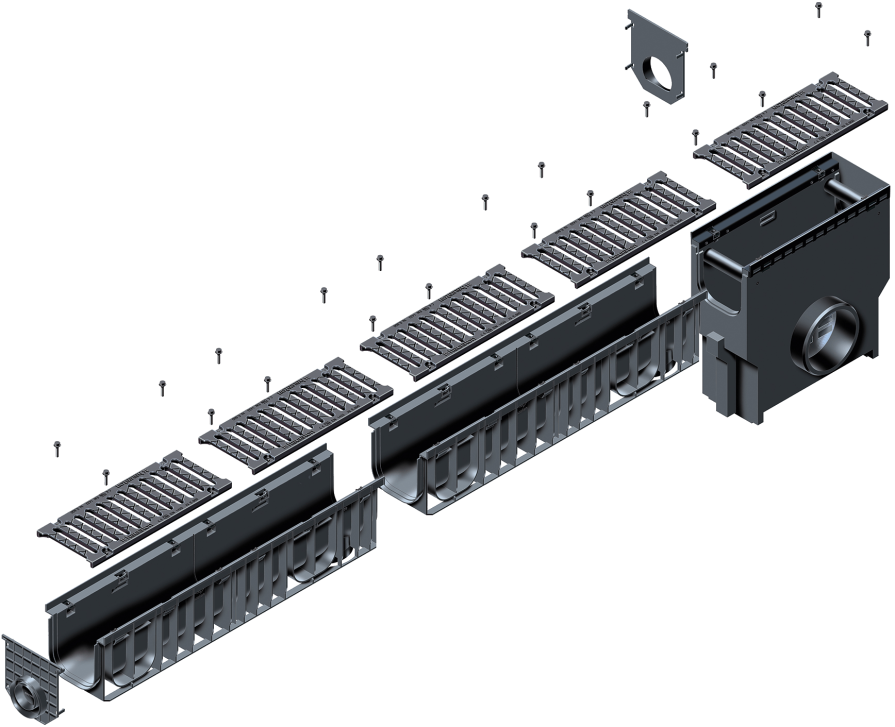

VUE DETAILLÉE DU SYSTÈME
Caniveaux en PE-PP recyclé, avec cornières renforcées intégrées en PE-PP selon DIN 19580 / EN 1433 et système d'emboîtement mâle/femelle pour une pose précise
grille en fonte ductile
Avaloir avec 2 sorties latérales de raccordement à la canalisation
Obturateur fermé
Obturateur avec sortie d'écoulement
